QuickPlanX offers the capability to export your projects to PDF files, allowing you to share or print your projects easily. This guide will walk you through the steps to export either the entire project or a specific branch as a PDF document.

Export Entire Project​

  1. Tap the ··· button located at the top-right corner of the toolbar to access the export menu.

  2. Select Export → PDF from the menu options.

    Customize Toolbar

    You can customize the toolbar to include the Export → PDF button for quicker access. Learn how to customize the toolbar display.

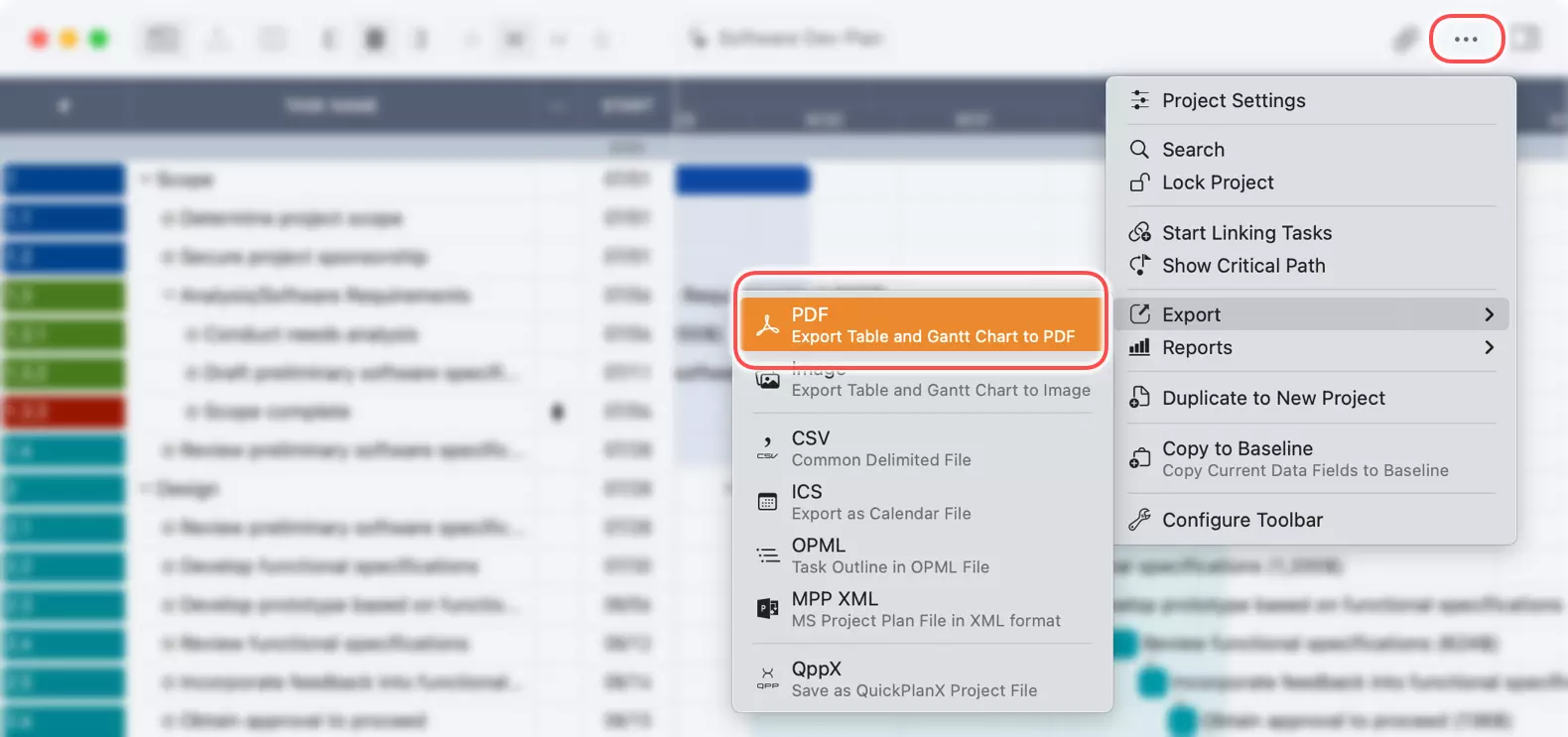

    Export Entire PDF

Once you've exported the project, you can save the PDF file to your device.

Export a Specific Branch​

On Mac​

  1. Select the Branch: Click on a group task or a subproject task that represents the branch you wish to export. If you select the root task, the entire project will be exported.
  2. Context Menu: Right-click or Ctrl + click on the task to open the context menu.
  3. Export Option: Choose Export → PDF from the context menu.
  4. Save the PDF file to your desired location on your Mac.

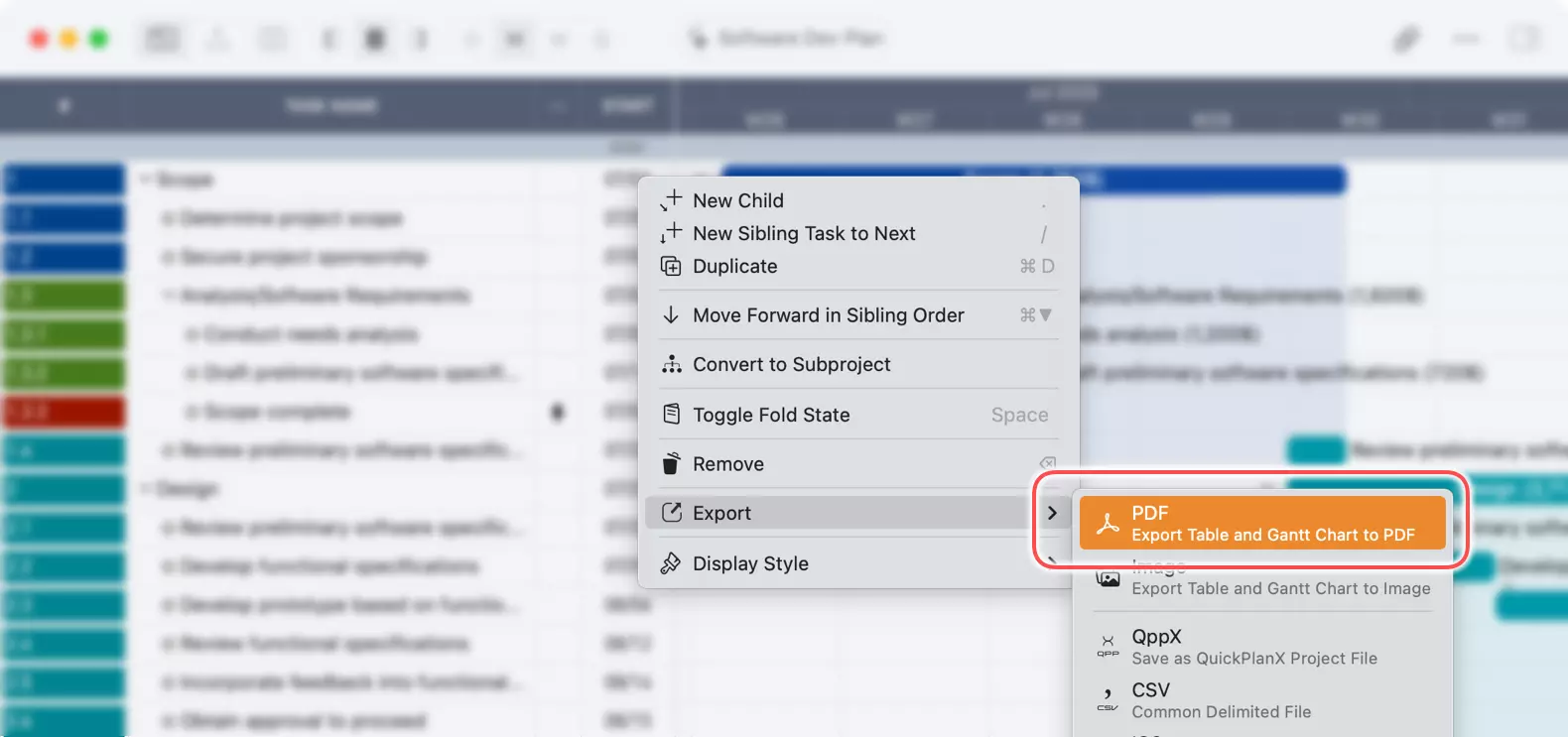

Export on Mac

On iPhone and iPad​

  1. Choose the Branch: Tap on a group task or a subproject task that represents the branch you want to export.
  2. Action Bar: Tap the ··· button on the action bar to view more options.
  3. Export Selection: Select Export → PDF from the menu.
  4. Save the PDF file to your desired location on your device.

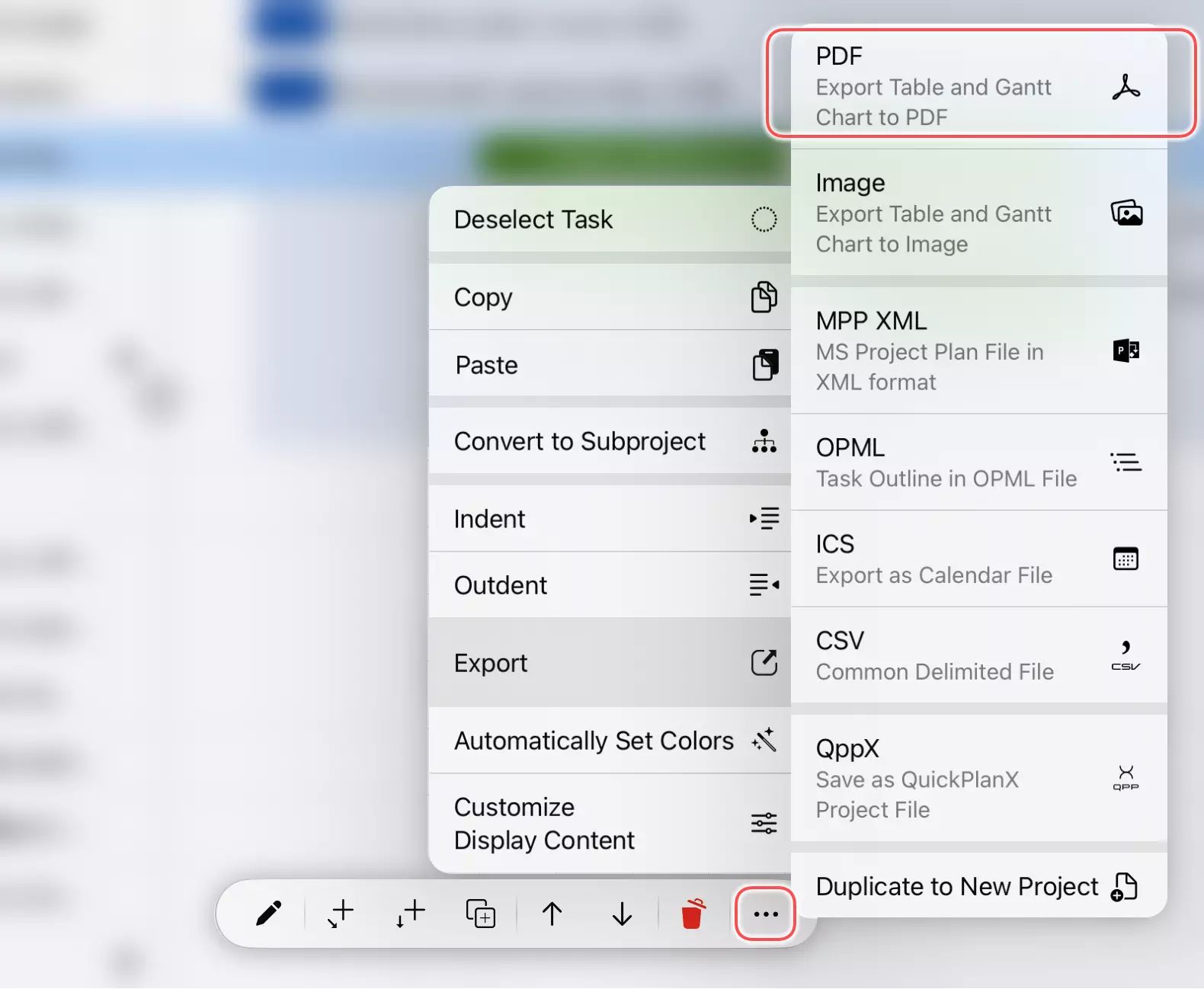

Export on Mobile

By following these steps, you can quickly and easily export your projects to PDF format, ready for sharing or printing.

Additional Notes​

Printing Considerations​

QuickPlanX provides more comprehensive options to control the PDF output than the system print panel. For optimal printing results, we recommend exporting your project to a PDF file first rather than using direct printing.

Large Project Printing​

Printing large projects presents unique challenges due to their extensive scope and detail. For detailed guidance on handling large project prints effectively, please refer to our discussion about print challenges.

Partial Export Options​

As described in this article, you can select a group task or subproject task to export only the selected portion of your project.

QuickPlanX also allows you to duplicate an entire project or part of a project to create a new project, with options to control the time period and content of the output. If you need to export only a specific time period of your project to PDF, you can first duplicate the relevant portion and then export the new project.
